83/50 Series Brass Padlocks
Home
Padlocks, Hasps, Chain & Cable
Padlocks & Accessories
Rekeyable
ABUS
83/50 Series Brass Padlocks

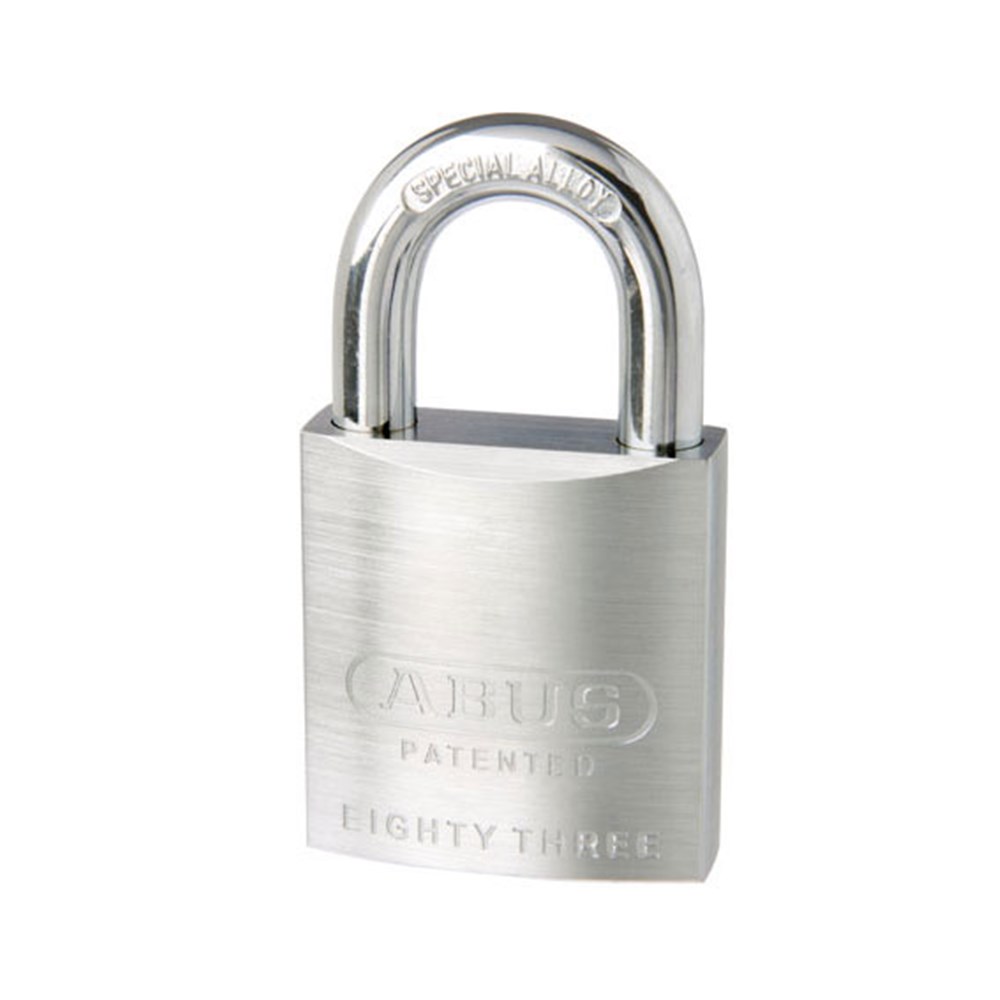

ABUS 83 Series Premium Rekeyable Padlock with 50mm Brass Body and 25mm Hardened Steel Shackle KA 4304 - 8350NKA4
Zoom
ABUS 83 Series Premium Rekeyable Padlock with 50mm Brass Body and 25mm Hardened Steel Shackle KA 4304 - 8350NKA4
Product Code: 8350NKA4
Are you a tradesperson?
Get access to our best prices
Apply Now
Description
ABUS 83/50 series padlock. Keyed alike to 4304.
Australian Standard Certified
AS4145.4 2002
.
Dimensions
a
Body width
48 mm
b
Horizontal Shackle Clearance
24 mm
c
Vertical Shackle Clearance
27 mm
d
Shackle diameter
9.5 mm
Repeatable keyed alike code 4304 (KA4).
50 mm heavy duty nickel plated brass lock body.
Double ball locking.
Special alloy shackle with Nano-Protect™ plating.
25 mm shackle as standard.
9.5 mm shackle diameter.
Removable cylinder assembly for quick rekeying.
Incorporates the popular 570 6 pin style barrel.
Silca LW4 keyway.
Compatible with most restricted keying profiles.
Quick change shackle feature.
Easily converted from snap shut to key captive function.
Australian Standard AS4145.4 2002:
Physical Security Rating
SP6
Corrosion Resistance Rating
C4
Range of replacement shackles.
Supplied boxed.
Technical Specifications
Brand
ABUS
Padlock Body Size
50 mm
Padlock Keyed Alike
KA4304
Shackle Diameter In mm
9.5
Shackle Material
Special Alloy With Nano-Protectâ„¢ Plating
Key Profile
LW5
Material
Brass
How is it Keyed
Keyed Alike
Documents
