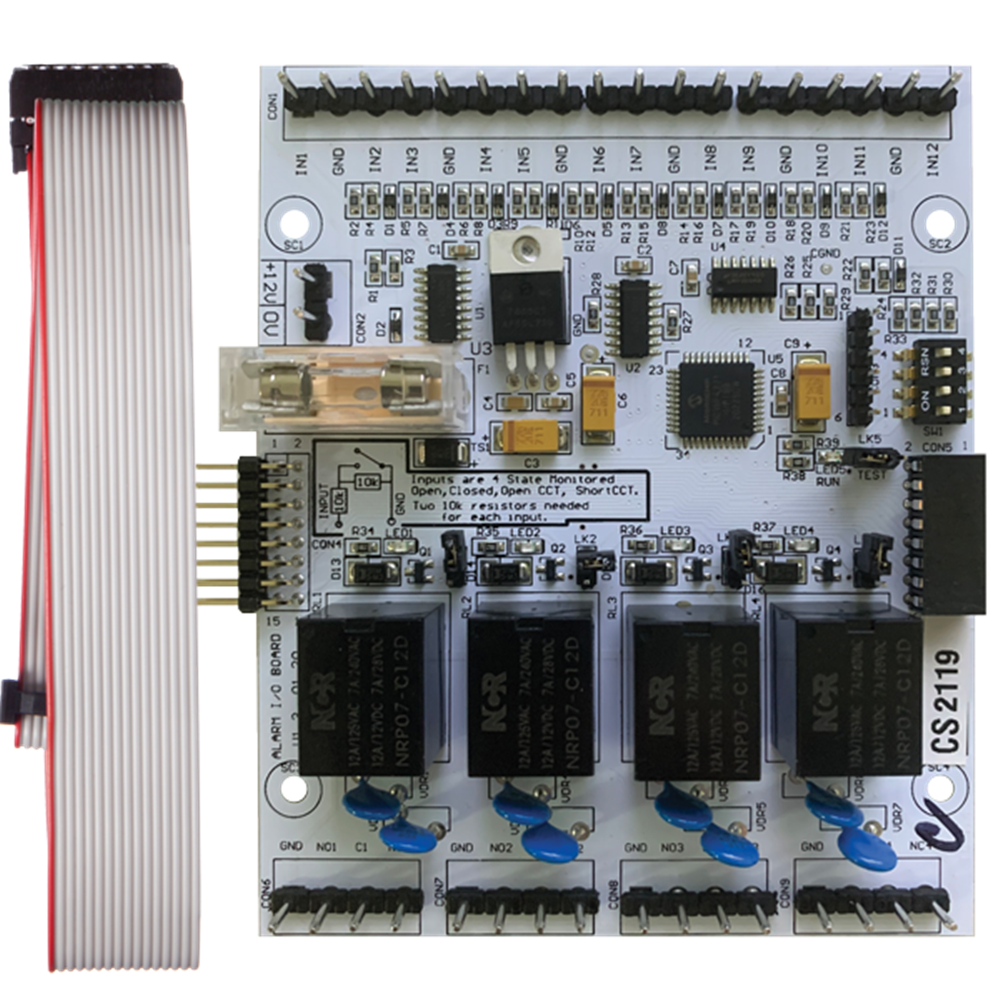

Connects to the controller using the included ribbon cable.
Up to 5x Alarm Expansion Boards can be connected to the one EVO controller.
Each Board adds 12 monitored four state inputs.
Open, Closed, Open Circuit, Short Circuit
Install with 2x 10k resistors
Input Monitoring can be turned off via software.
Each Board adds 4 additional C-Form Relay Outputs.
Each Relay has a 'Normally Open' and 'Normally Closed' Contact.
Maximum 24 volts DC to be switched by each relay.
Can NOT be connected and combined with 16-Way Expansion Boards to the same EVO controller.
Requires Version 3.5 Board.
100% Australian made and designed.

CS Technologies

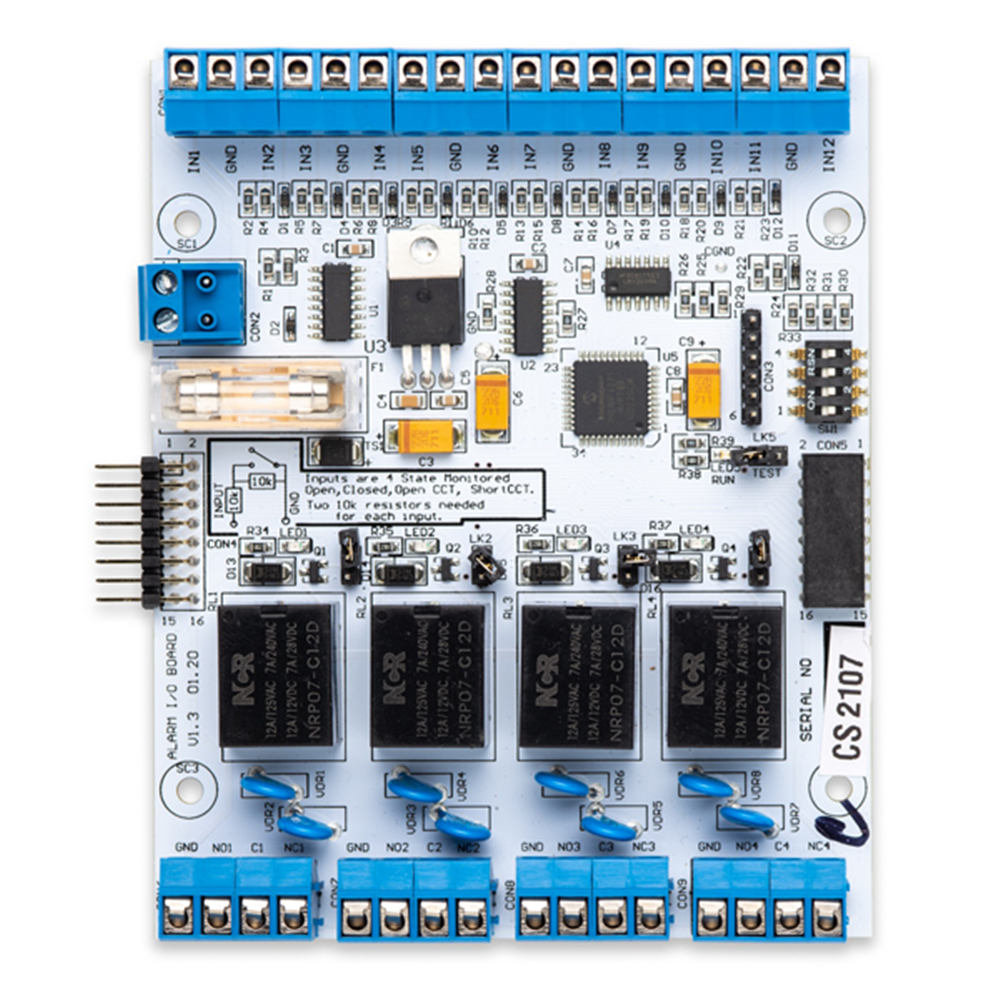

CS 12 Input and 4 Relay Output Expansion Board
