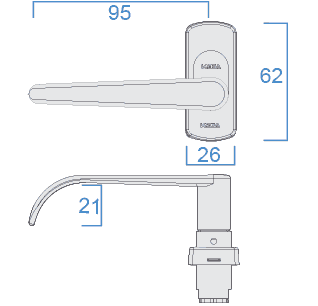

SB312 DIMENSIONS

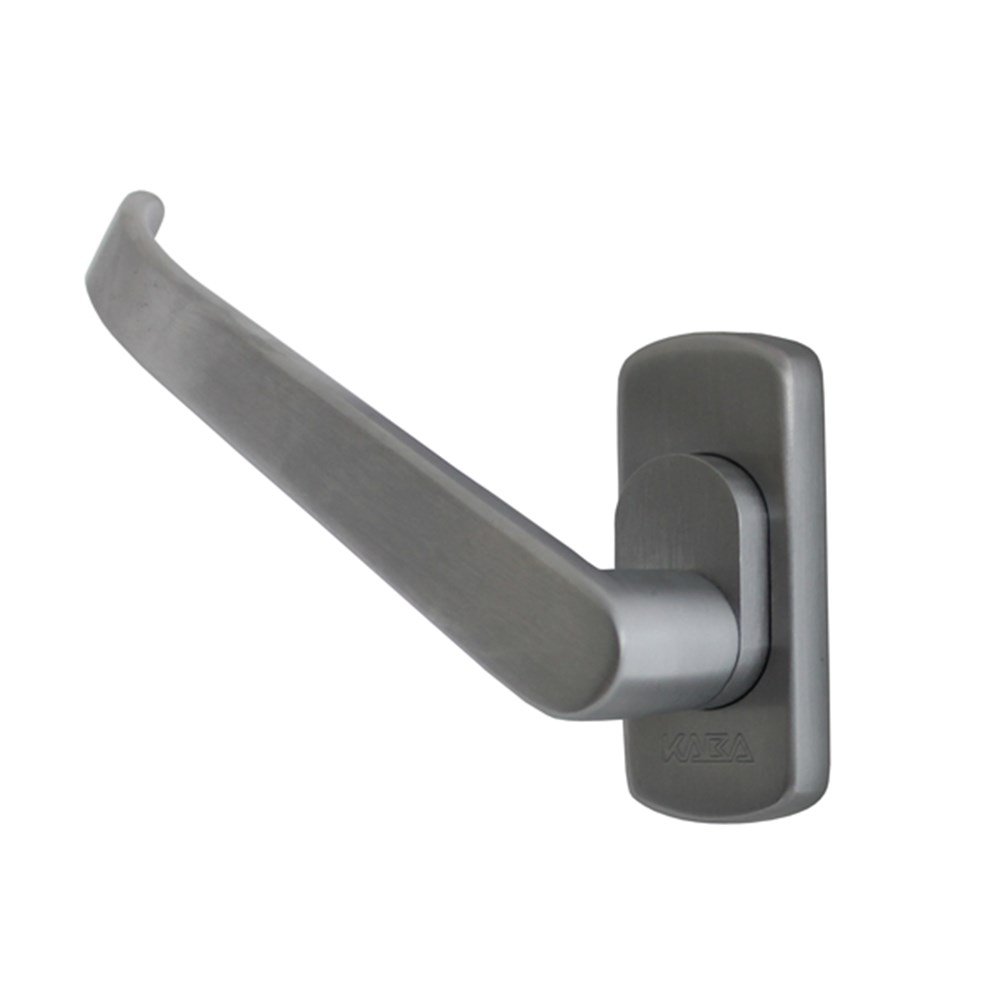

KABA TURNSNIB SB312SCP **CASE FIXED ESCAPE LEVER**

Product Code: BOSB312SC

Single action downward lever operation to unlock door.
Suits 950/951 range of narrow backset locks.
Surface fixed escutcheon (FA950) provides stability by clamping on cylinder and also face fixing to door - supplied as standard.
Meets BCA/NCC requirements of egress for exit doors.
Lever design meets AS1428.1
Design for Access and Mobility when fitted to standard aluminium extrusion of 45 mm thick style.
Patented mechanism provides travel restriction to prevent lock damage.
Handed installation is field reversible.
Satin chrome plate finish.

dormakaba Escutcheons & Turnsnibs
