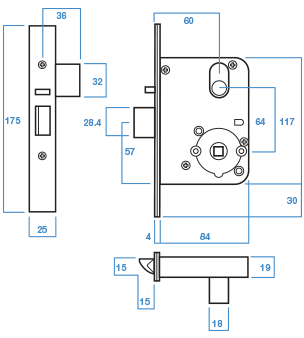

3574 Dimensions

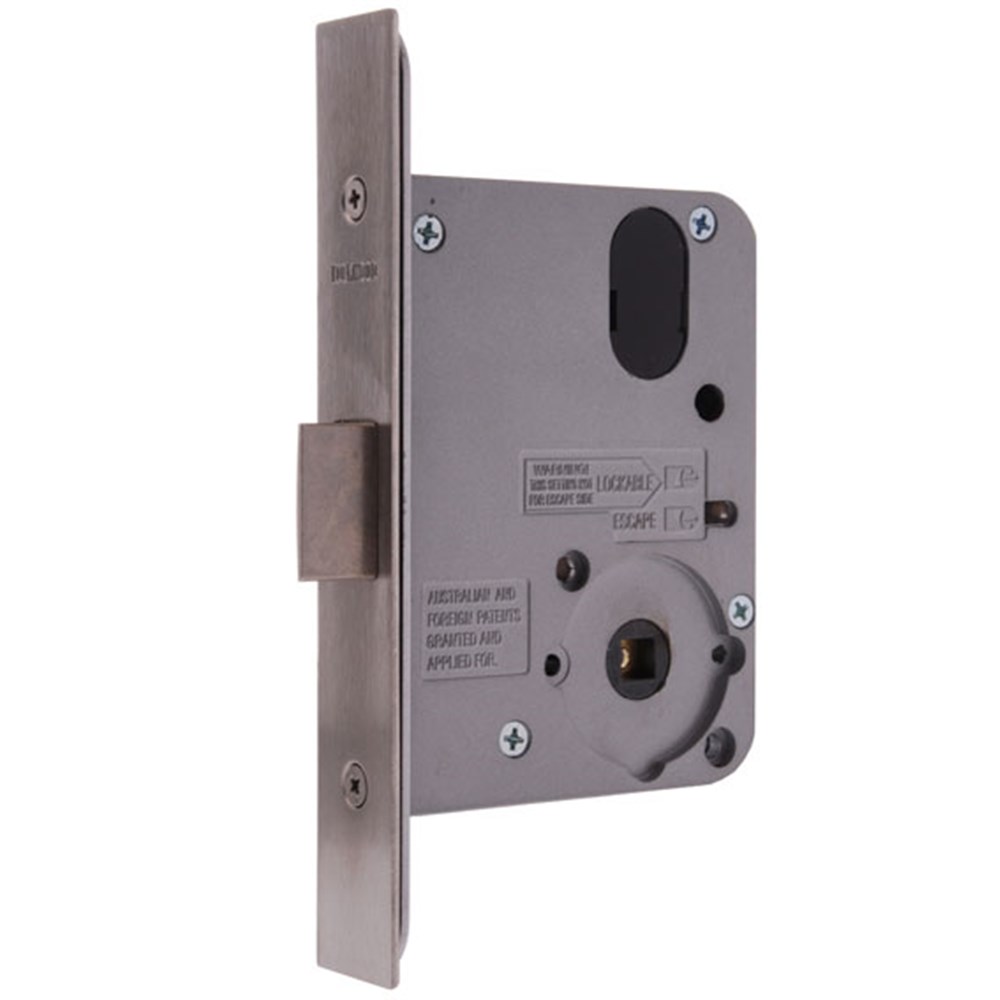

LOCKWOOD LOCK PASSAGE 3574 SC

Product Code: 3574SC

Brand	LOCKWOOD
Anti-lockout Function	No
Compatible With Most Restricted Keying Systems	No
Finish	Satin Chrome
Holdback Function Built-in	No
Lock Grade	Commercial
Lock Pitch In mm	64
Mortice Deadbolt	No
SCEC Endorsed	No
Suits Door Thickness	32 mm to 50 mm
Backset	60 mm
Fire Rated	Yes, 4 hours
Face Plate Length in mm	175
Face Plate Thickness in mm	4
Face Plate Width in mm	25
Handing	Reversible
Mortice Lock Case Depth in mm	84
Mortice Lock Case Height in mm	117
Mortice Lock Case Thickness in mm	19
Spindle Type	7.6 mm Square Split Spindle
