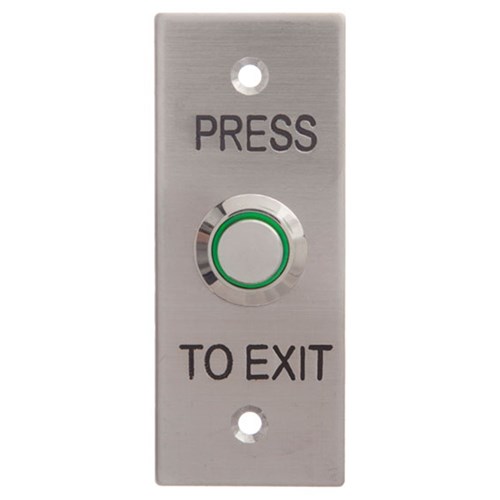

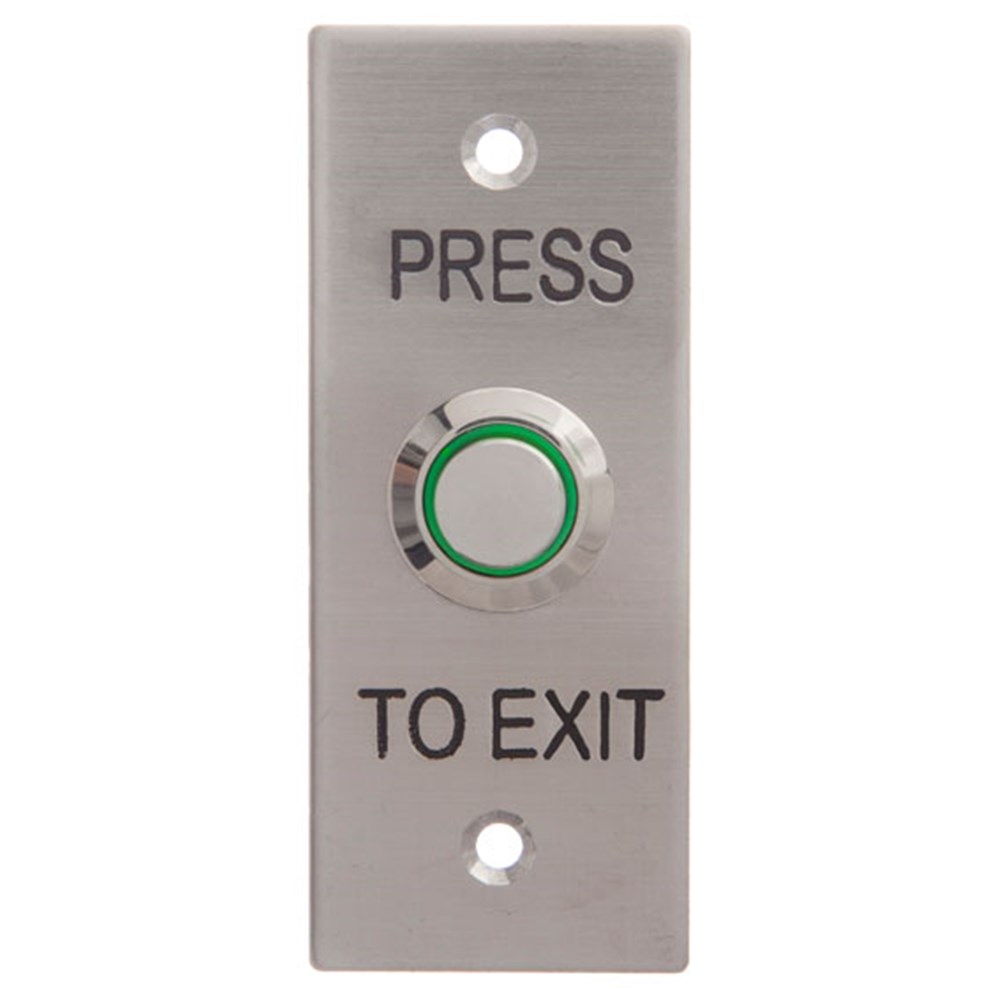

Neptune Press to Exit Illuminated Button with Architrave Stainless Steel Faceplate - WES1611

Product Code: ACWES1611

Are you a tradesperson?

Get access to our best prices



Description

Neptune stainless steel flush mount illuminated exit button.

With green LED on standard architrave size plate.

  • Max current: 2A (12 or 24VDC).
  • Min current: 5mA.
  • Resistance: <=50 mΩ.
  • Insulation resistance: >100 MΩ.
  • Contacts: 1 x NO and 1 x NC (isolated).
  • Electric life: 50,000 cycles.
  • Mechanical life: 1m cycles.
  • Terminals: Flying leads.
  • Dimensions: 30 (W) x 75 (H) x 32 mm (D).
Technical Specifications
Brand NEPTUNE
Finish Stainless Steel
Working Voltage 12 Vdc to 24 Vdc
Current Rating 2 A
LED Indicator Yes
Momentary Yes
Depth in mm 32
Overall Length in mm 75
Width in mm 30
Text or Symbol on Plate PRESS TO EXIT
Touch or Touchless Operation Touch
