Product Code: PR48530SS

Euro cylinder operated mortice lock.

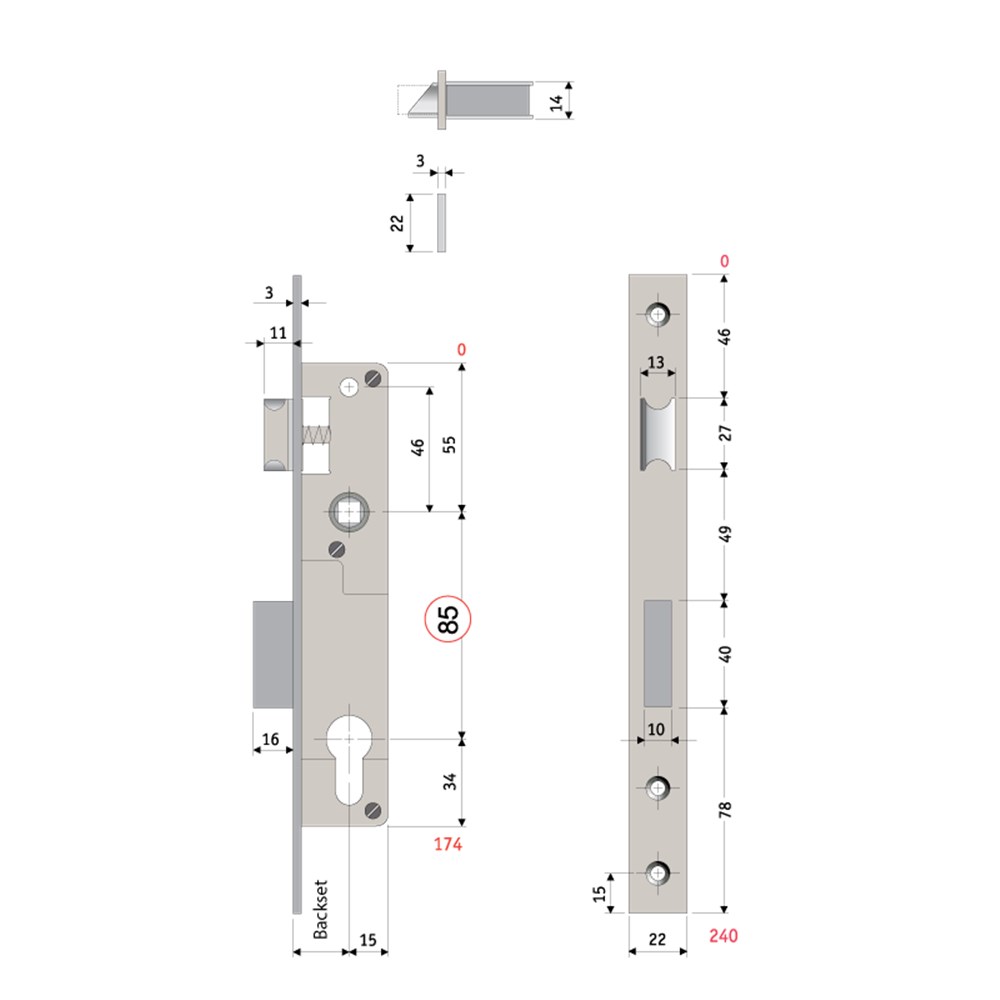

30 mm backset.
Pitch 85 mm.
Face plate 240 (L) x 22 mm (W).
Case size 174 (H) x 45 mm (D) includes face plate.
Easily reversible without opening the case.
8 mm spindle hub.
Single throw 15 mm deadbolt.
Key retracts latch.
Incorporates a fixed cam euro style cylinder.
Supplied less cylinder.
Supplied with Euro cylinder retaining screw
Supplied with black plastic escutcheons, strike plate & fixing screws.
Strike 170 (L) x 24 mm (W) with 16 mm lip.
Supplied boxed.
Finished in satin stainless steel.

Technical Specifications

Brand	PROTECTOR
Compatible With Most Restricted Keying Systems	Yes
Finish	Satin Stainless Steel
Lock Grade	Residential
Lock Pitch In mm	85
Backset	30 mm
Uses Cylinder/Plug Type	Euro Fixed Cam
