Product Code: PR78545SS

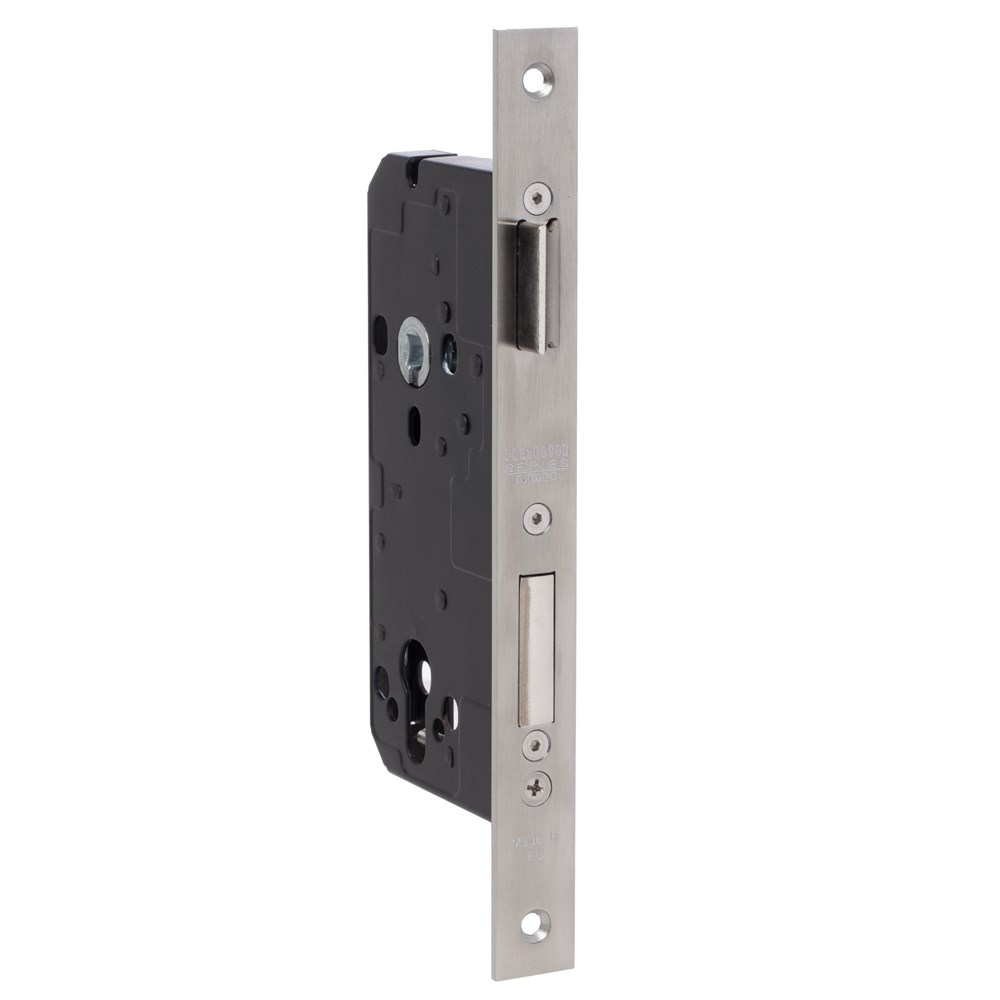

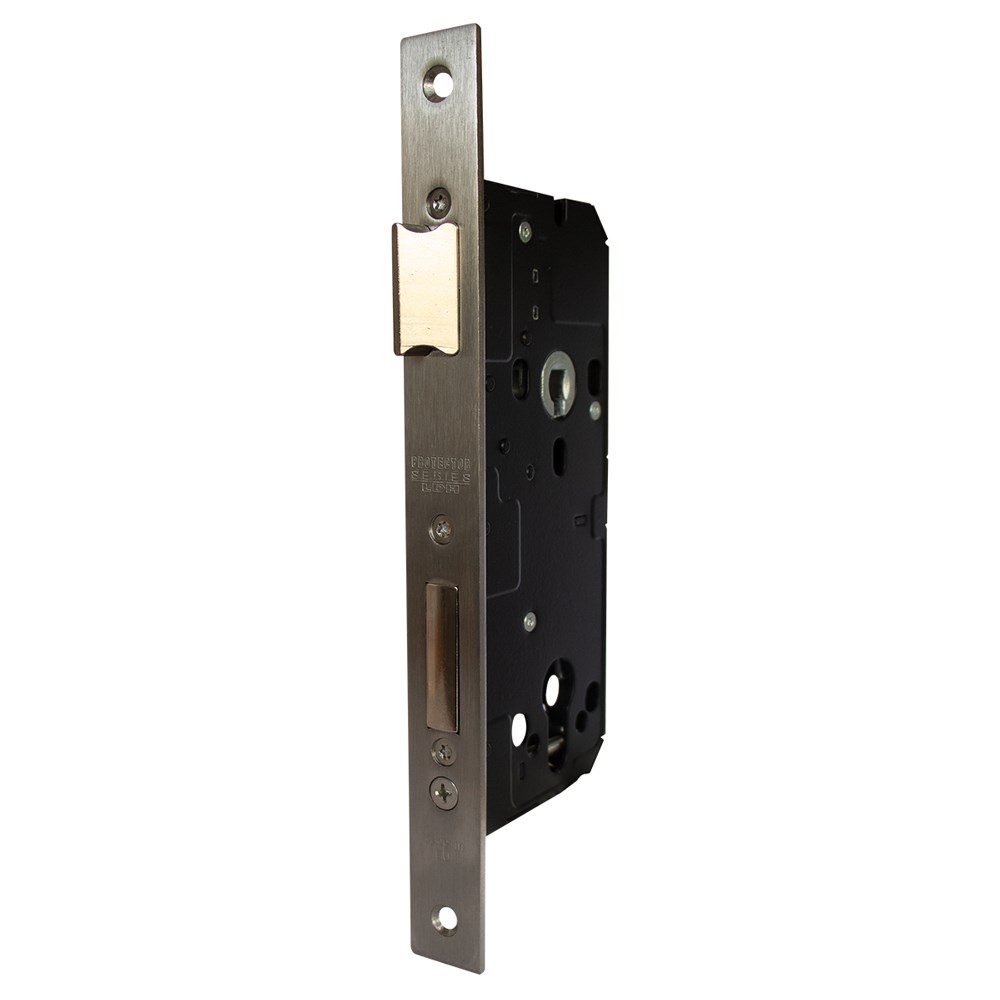

Euro cylinder operated heavy duty mortice lock.

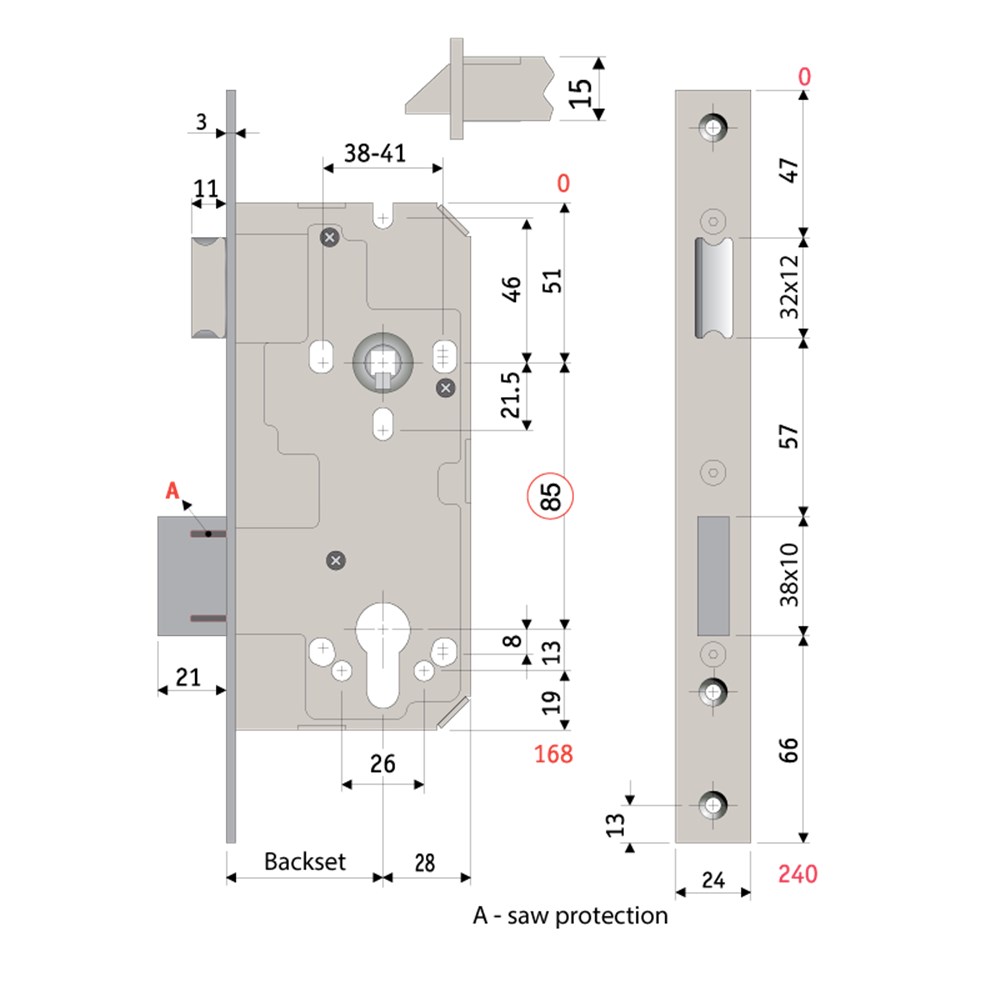

45 mm backset.
Pitch 85 mm.
Face plate 240 (L) x 23 mm (W).
Case size 168 (H) x 73 mm (D) includes face plate.
Handle fixing centres 41 mm.
Easily reversible without opening the case.
8 mm spindle hub.
Double throw 21 mm deadbolt with anti-saw protection.
Key retracts latch.
Incorporates a fixed cam euro style cylinder.
Supplied less cylinder.
Supplied less escutcheons.
Strike 200 (L) x 24 mm (W) with 16 mm lip.
Finished in satin stainless steel.

Technical Specifications

Brand	PROTECTOR
Compatible With Most Restricted Keying Systems	Yes
Finish	Satin Stainless Steel
Lock Grade	Residential
Lock Pitch In mm	85
Backset	45 mm
Uses Cylinder/Plug Type	Euro Fixed Cam
